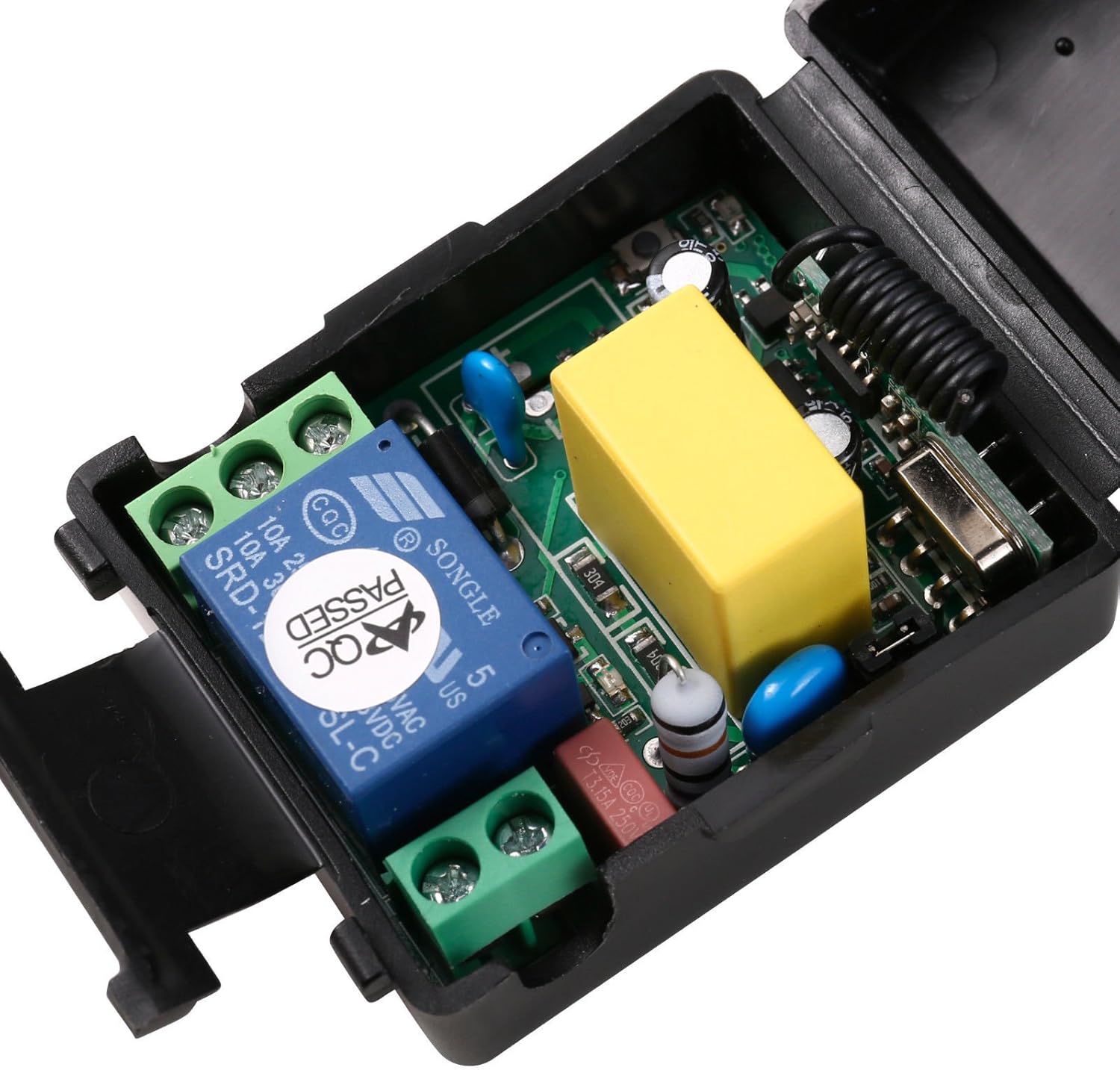

110VAC 1CH Wireless Remote Control Lighting Power Switch Transmitter + Receiver

Features: This 110V 1CH remote control switch is with 10A relay, which can load large power appliances Can learn multiple remote control, and each reomote can contaol mulitple switch, a switch can also be controlled by mulitple remote control. Short circuit pad to achieve JOG, interlock, selflocking working mode. Widely used in lighting, electric doors/window, lifting equipment, lift control and security industries and other fields Specifications: Working Voltage: 110VAC Working Temperature: -20℃~+60℃ / -4℉~+140℉ Operating Frequency: 433MHZ Maximum load: ≤10A Weight: 0.037kg Size: 43x38.5x19mm / 1.69x1.52x0.75in Operating Mode: JOG:Single relay will stay on only as long as corresponding remote key is pressed. Interlock: For each relay: press corresponding key for on (all others off). Self-locking: Press corresponding key for on, press same key again for off, each relay independently. Program Mode in: Connect T: Self-locking Connect l: Interlock Not connected: JOG Operating Method: Learning Code Method: Press the learn button on the controller, the indicator light goes off, it means to enter the learning state; Press the button down (about 2s) on the remote control (transmitter) which need to be learned, the indicator will flash 5 times, them will be on, indicating that the learning is successful Clear Code: press and hold the controller button, when the indicator light goes off, it will go back to on, indicating that the remove code is successful Package: 1 x Transmitter 1 x Receiver

• Operating Frequency: 433MHZ
• Working Voltage: 110VAC
• This 110V 1CH remote control switch is with 10A relay, which can load large power appliances
• Short circuit pad to achieve JOG, interlock, selflocking working mode.
• Can learn multiple remote control, and each reomote can contaol mulitple switch, a switch can also be controlled by mulitple remote control.
